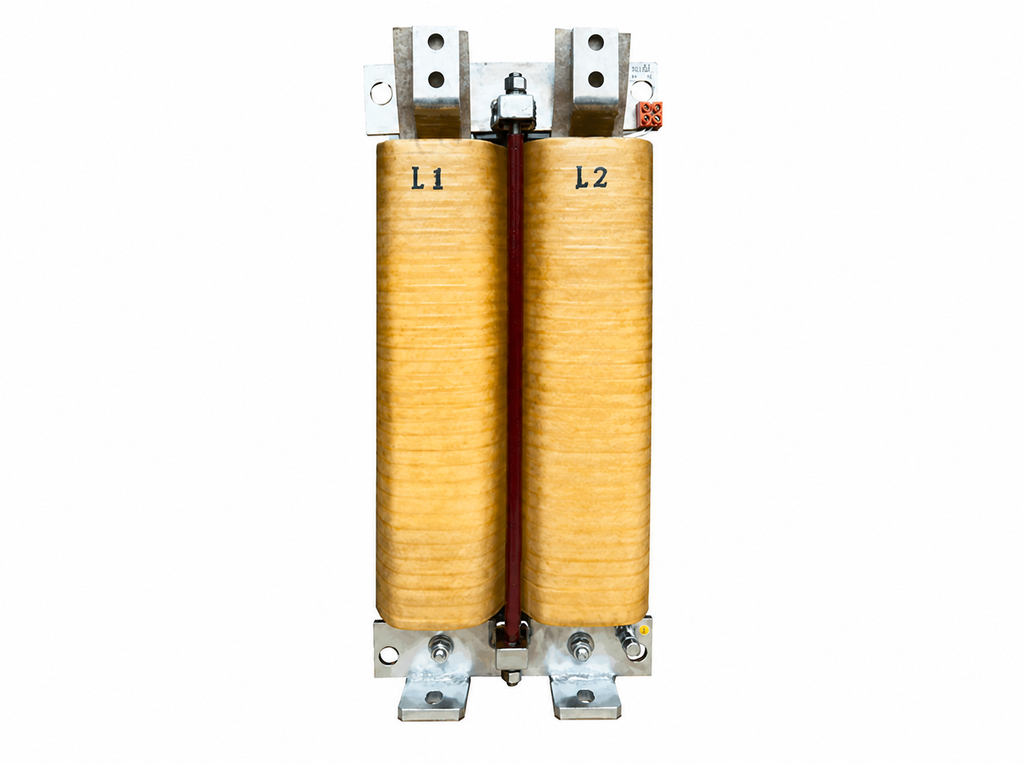

DC Reactor – 667 A – OPS-0161

Product Profile

In application at the rectified DC circuits, and the DC outputted via reactor is closer to the ideal one; Used in the sections between rectifying and contravariance, reduce higher harmonics of input current to make the operation of contravariant section more stable, promote the power factor of input power-supply and limit the short circuit current.

Product Applications

Frequency conversion, photovoltaic (solar power system), wind power generation, renewable energy, medical equipment, etc.

Technical Parameters

Features

• 1. Reactor air gap adopts arc welding process, which has low level of sound, small magnetic flux leakage and stable inductance.
• 2. Core with grain-oriented cold-rolled silicon steel sheets.
• 3. It can withstand the electric power in case of sudden short circuit and has good dynamic stability.
• 4. It has dampproof, salt fog-proof, mold proof performances to ensure long-term reliable operation.
• 5. Coiled with foil winding process, good overload ability in short time, perfect process, and good presentation quality.
• 6. Good heat dissipation, low temperature rise, low losses,High power factor, high operational efficiency,
• 7. Vacuum Pressure impregnation (V.P.I) is used, high-temperature cure process, high structural strength, and little vibration.
• 8. The core limbs are segmented evenly, each core discus is solidified into a whole with the air gap, the winding is wound directly on the core limb, and the top and bottom yokes are closely bonded with the core limb.
